stainless steel evaporator orbital welding machine Customized Automatic Orbital Welding Machine

Name: stainless steel evaporator orbital welding machine Customized Automatic Orbital Welding Machine
Brand: Hyzont
Price: 1 USD

China stainless steel evaporator orbital welding machine Customized Automatic Orbital Welding Machine wholesale

Name : Condenser U Tubing Tube Welding Machine

Model : UFH-15/16

Application : Stainless Steel Condenser U tube Auto Weld Fabricating

Weld Current : Max. 200A

U tube Material : Stainless Steel

U tube Thickness : 1-3mm

Type of Welding : TIG/GWAT (No wire feeding)

Place Origin : China

Brand Name : Hyzont

Model Number : UFH-15/16

Certification : CCC

Place of Origin : China

MOQ : 1Set

Price : negotiable

Supply Ability : 100 Sets a month

Delivery Time : 3 Days after Payment

Packaging Details : Flight Case

Contact Now

steel evaporator orbital welding machine Customized Automatic Orbital Welding Machine

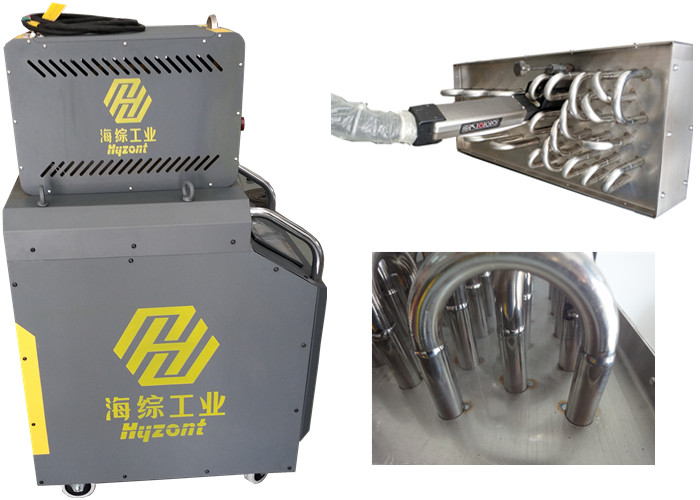

200A TIG Orbital Welding Machine for Condenser U tubing Welding Automatic Tube Welding Machine

A specially designed TIG welding head for automatic welding of stainless steel condenser U-tubes, operating on the same principle as orbital welding.

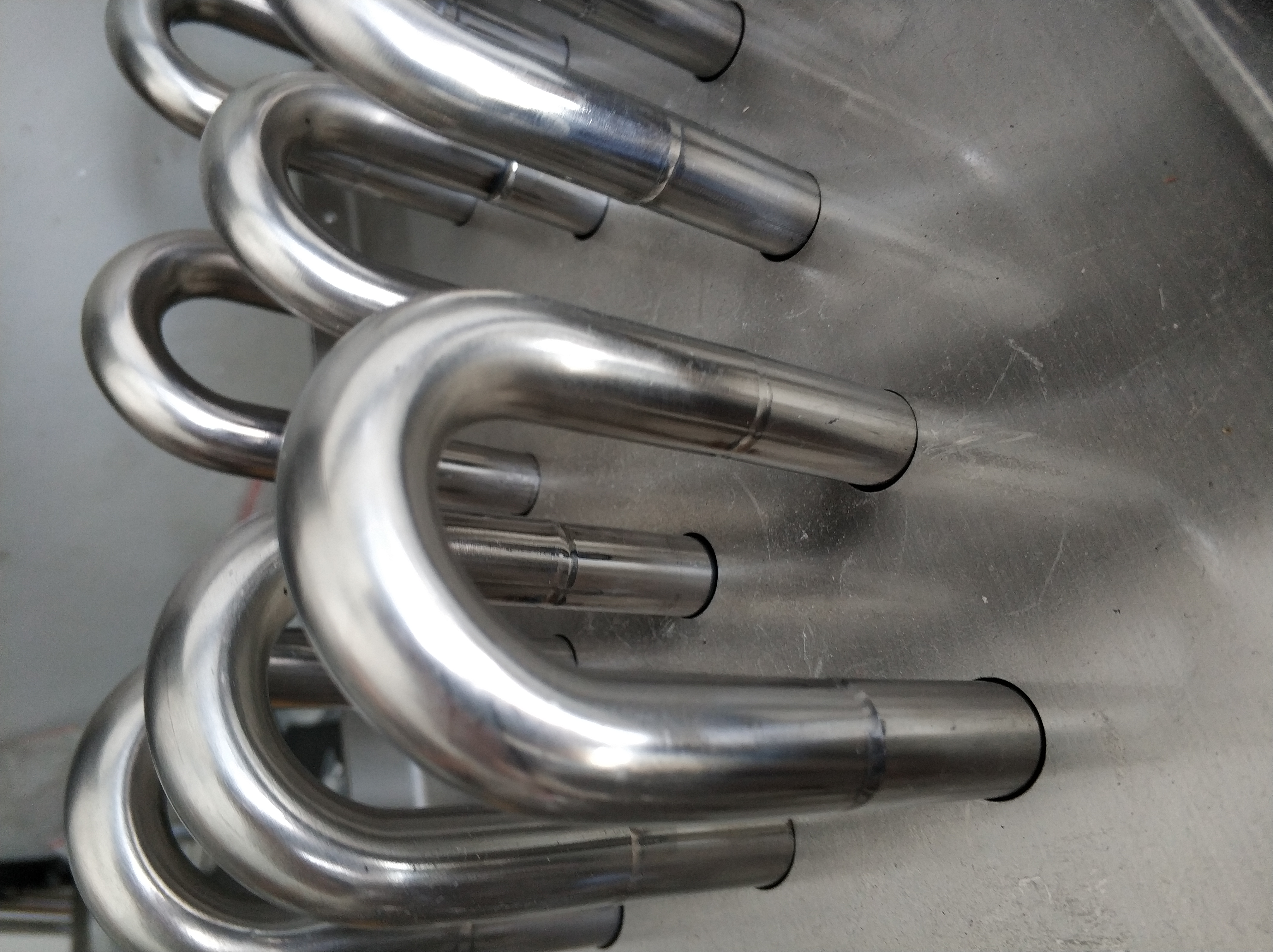

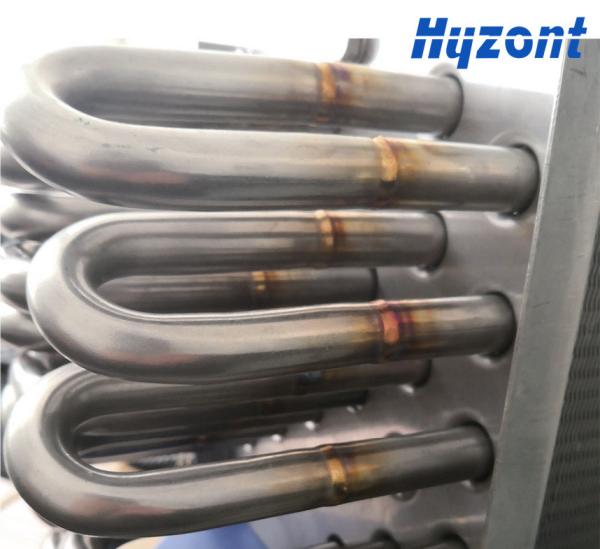

Condenser U tube welding
Evaporator U tube welding
Heat exchanger fabricating
Carbon Steel U tubing weld
Stainless Steel U tubing weld

Features:

Customized design suitable for all types of U-tubes
Quick-install clamps for easy use
Low labor cost with high welding efficiency
Collision-free welding with reliable contact in narrow-space U-tube applications
Heat-resistant components in a compact, light and durable design
Water-circuit cooling design for long-duration operation

Specification:

Model	UFH-15
Material	Carbon steel, Stainless Steel, Titanium Alloy
Tube Fitting	Plugged U tube
Welding Process	TIG/GTAW (no wire feeding)
Tube OD(mm/inch)	12.7-15.88 mm
Tube Wall Thickness(mm)	3 mm
Tungsten OD(mm)	1.6
Rotating	360° free rotation with auto reset; all-position welding
Rotation speed(rpm)	0.3-6
Protective Gas	Argon
Cooling	Water
Cooling Flow(ml/min)	1000 ml/min
Cable Length	6 m
Main Dimension(mm)
Weight(kg)	1 kg
Dimension(mm)	377 x 38 x 100

Compatible for all weld heads
Portable and handy design, total 18 kg weight with complete functions, easy to move and work at height
SCM Microcomputer control system, sturdy and durable; difficult to break down with low maintenance cost;
Control pendant display for real-time data monitoring
Welding parameters can be set up, stored, printed and password-protected.
Built-in professional welding head parameters for accurate motion control.
Water-circuit cooling design for long-duration operation, substantially extending the service life of the welding head.
10-inch touch screen control panel, one-button printing of welding parameters, easy and fast to understand.
Perfect fault detection solutions including: overvoltage, electric leakage, gas detection, water pressure protections and error display; modular design for easy maintenance.

Power Source Specification:

Model	MWA-200A
Welding source	EWM (Germany)
Welding Current	200 A
Power source type	Inverter
Duty Cycle	200 A / 25%, 120 A / 100%
Input Voltage	AC 220 V ±10%, 50/60 Hz
Power	6.3 kVA
Cooling	Built-in water cooling
Display	7-inch touch screen
Programs Storage	32
Printer	Built-in printer
Insulation Grade	H
Protection Class	IP21
Weight	18 kg
Dimension	590 x 300 x 325
Control Function	Argon gas control Continuous welding current and pulse current control Welding head rotation control Wire feeding control
